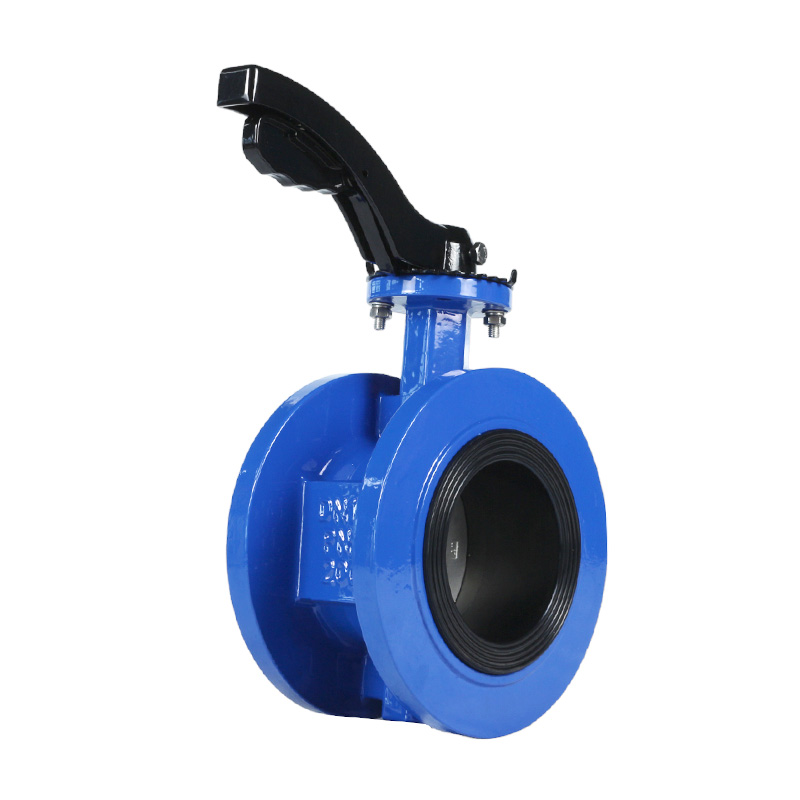

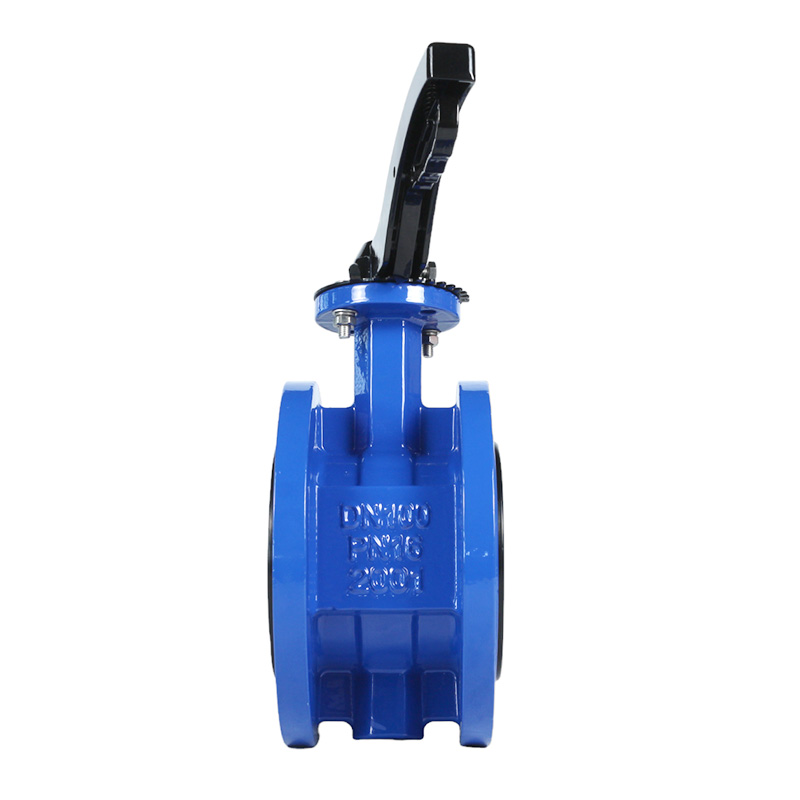

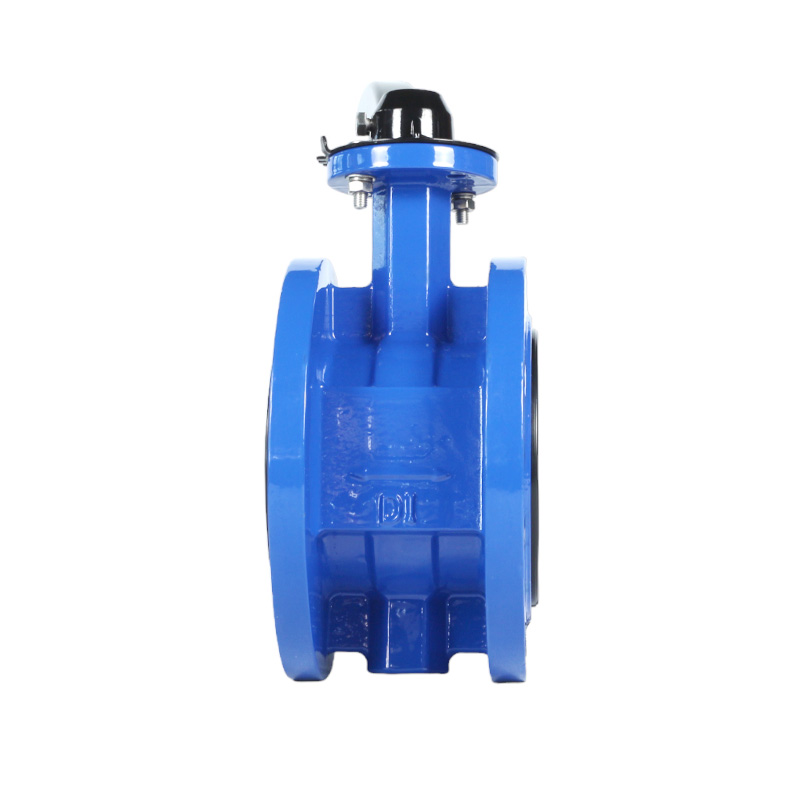

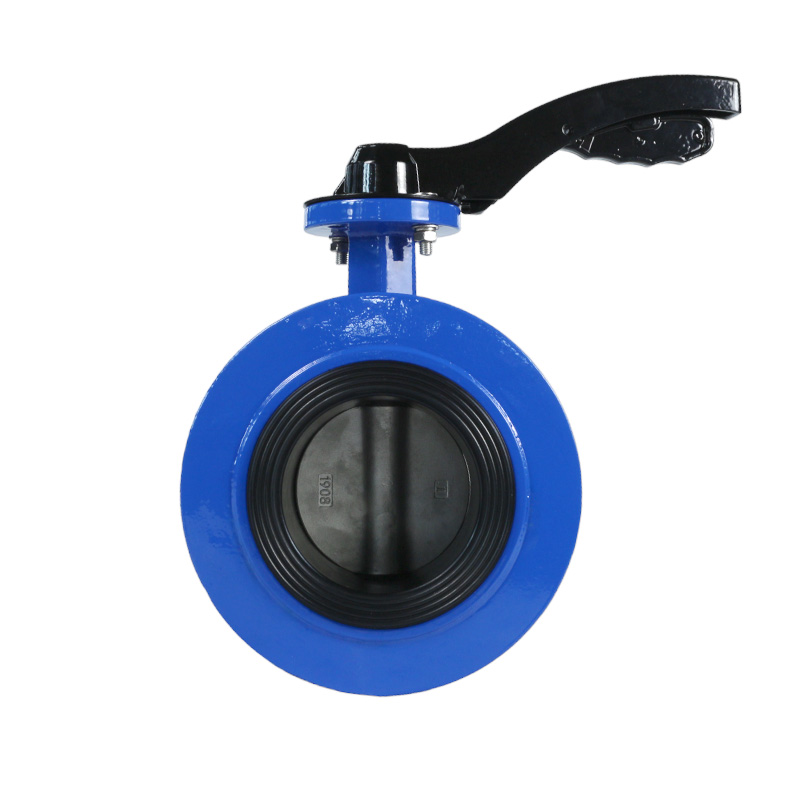

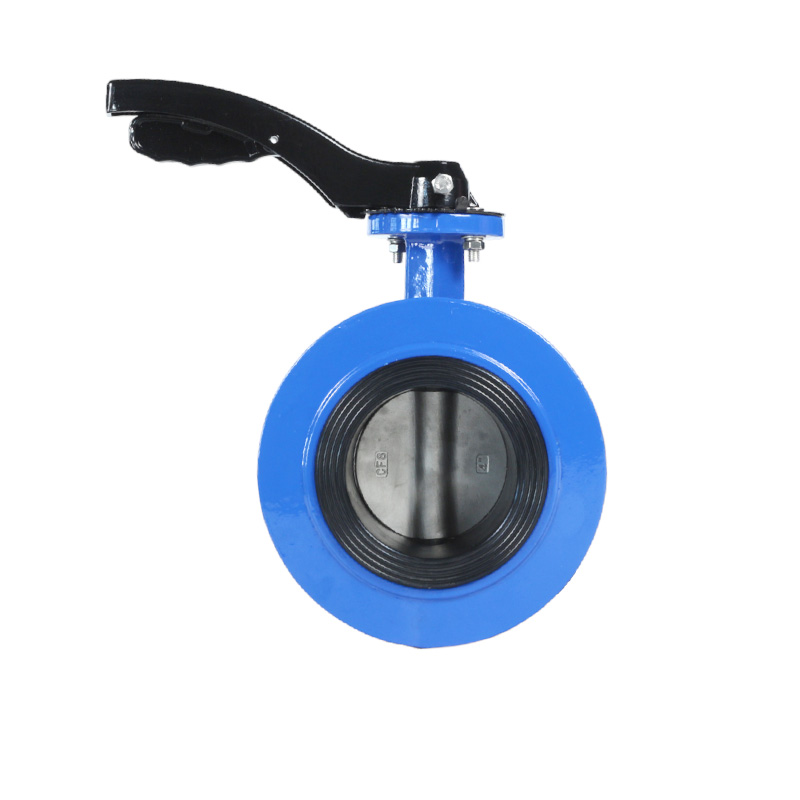

Ductile Iron cast iron Multi-standard flange butterfly valve

Flange cast iron butterfly valve suitable for multiple flange connection standards. Logo can be customized, DN50-DN1200

    Categories: ,

    Price

    2 years full warranty

    Worldwide shipping

    Secure payment

    Product Details
    Size DN80-DN600 DN650-DN3000
    Working pressure 16Bar 10Bar
    Shell 24Bar 15Bar
    Seal(Air) 6Bar 6Bar
    Operating Temperature –40℃~+160℃
    Operating Environment Ballast and bilge system          Chemical processing

    Desalination plants   Drilling rigs    Drinking water

    Dry powder     Food and beverage     Gas plants

    HAVC  Mining industry  Paper industry    Sand handling     Seawater    Sugar industry

    Thermo technical water treatment   Waste water
    Driving  method Hand  Lever  Worm Gear  Electric  Pneumatic

    Main Material:



    Name Material
    Body Cast Iron  Ductile Iron
    Disc Ductile Iron  Carbon Steel Stainless Steel  AL-Bronze
    Shaft Stainless Steel  Monel K500
    Seat BUNA  NBR  EPDM  VITON  HEPDM  Neoprene  Hypalon Natural rubber

    flange butterfly valve drawing
