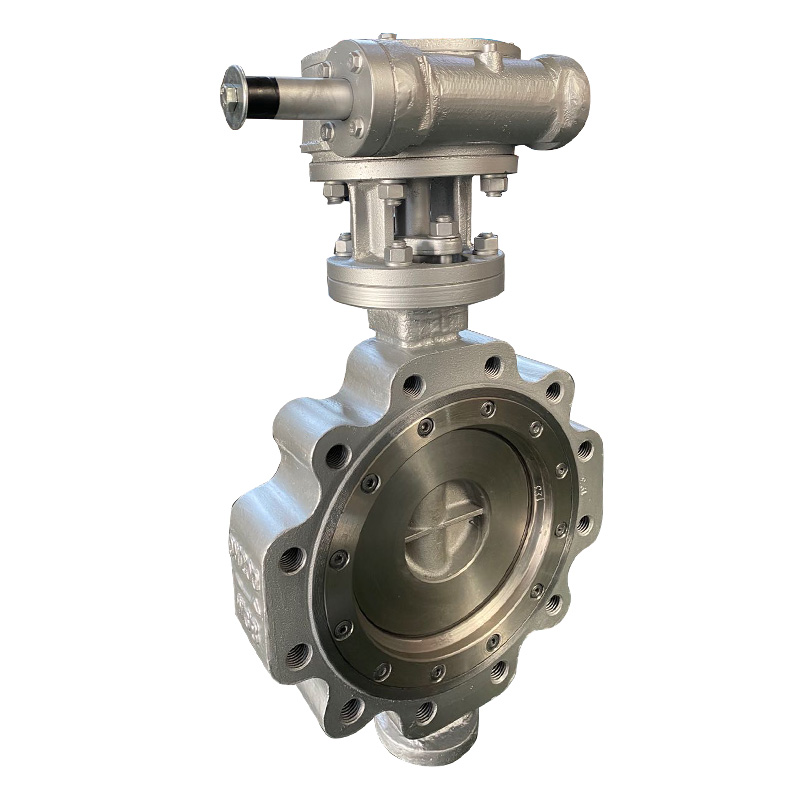

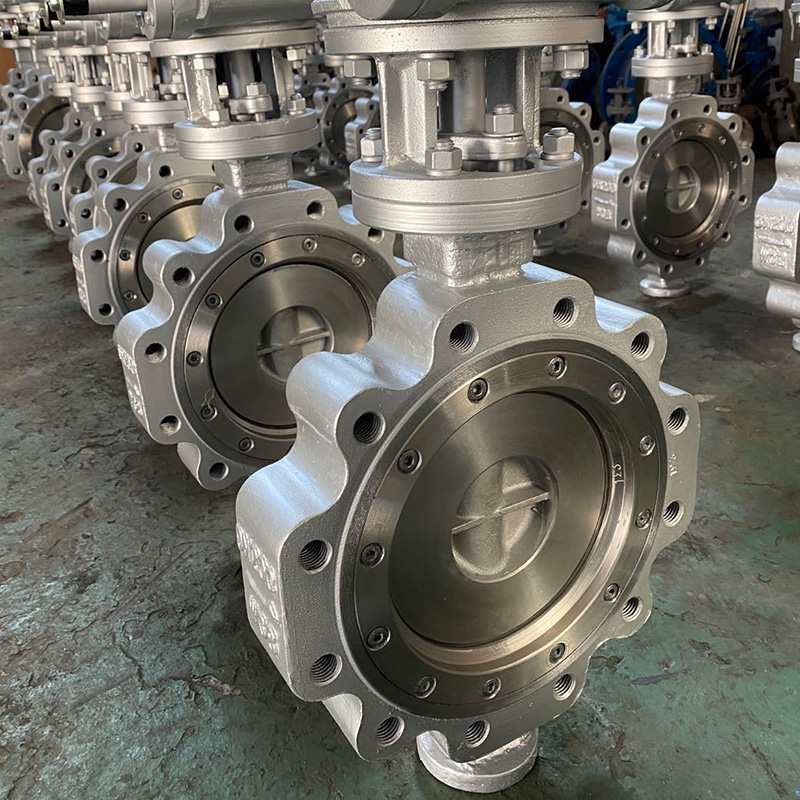

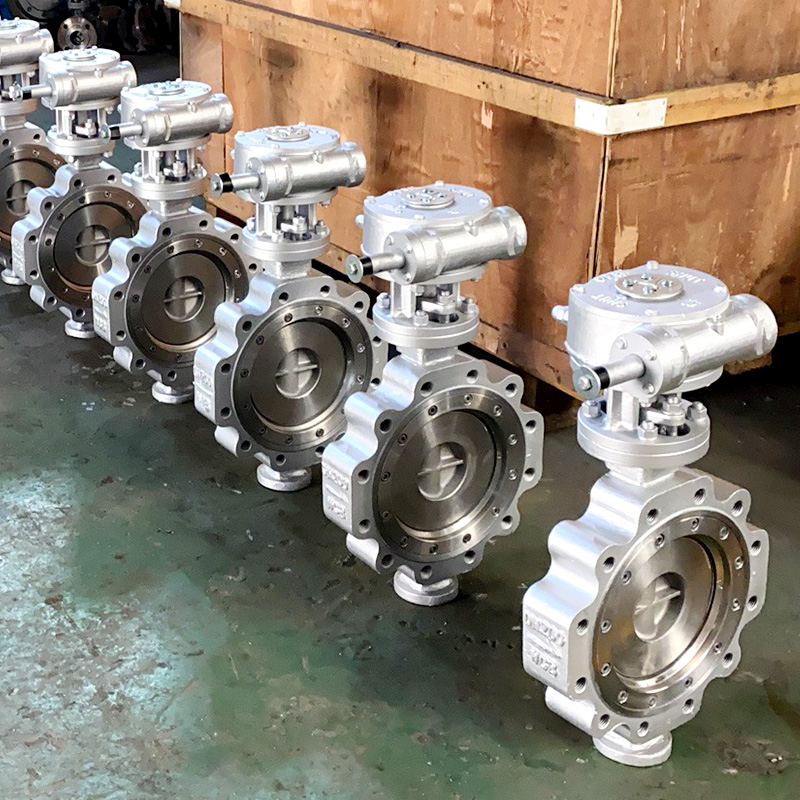

Name:Worm Gear Lug WCB Triple Eccentric Butterfly Valves

Material:Body: WCB; Disc: 6A, Stem: 316. Seat:  surface STL,Sealing ring: SS316+STL

Nominal Pressure:150LB

Nominal Diameter:DN250

End Connection:Lug

Structure:Triple Eccentricity

Operation:Worm gear

Valve type:Industrial Valve

Working Temp.:-100℃~+425℃

butterfly valve for chilled water system

The stem is offset on both the X (1)and Y (2) axis of the valve’s

center line. This produces a cam一like motion. The third offset (3)

consists of an inclined conical  profile machined into  the  valve

sealing  surface. This allows rotary engagement and disengagement

of   the   seat   and   seal   ring without interference.  All  rubbing

between  seat  and seal ring is thereby eliminated. Once the seat

and seal ring are  fully  engaged  torque  is applied in order to

create a bi一directional, zero leakage,  metal-to一metal seal. For

this reason, triple offset valves are often defined as “torque” seated

rather than”position” seated as in the case of resilient or high performance products.

Multi-layer disc sealing ring adopts ss304 and graphite laminated, sealing

by the inside graphite, applied for low and middle pressure, as recycle water,

swage treatment, city building, etc.
