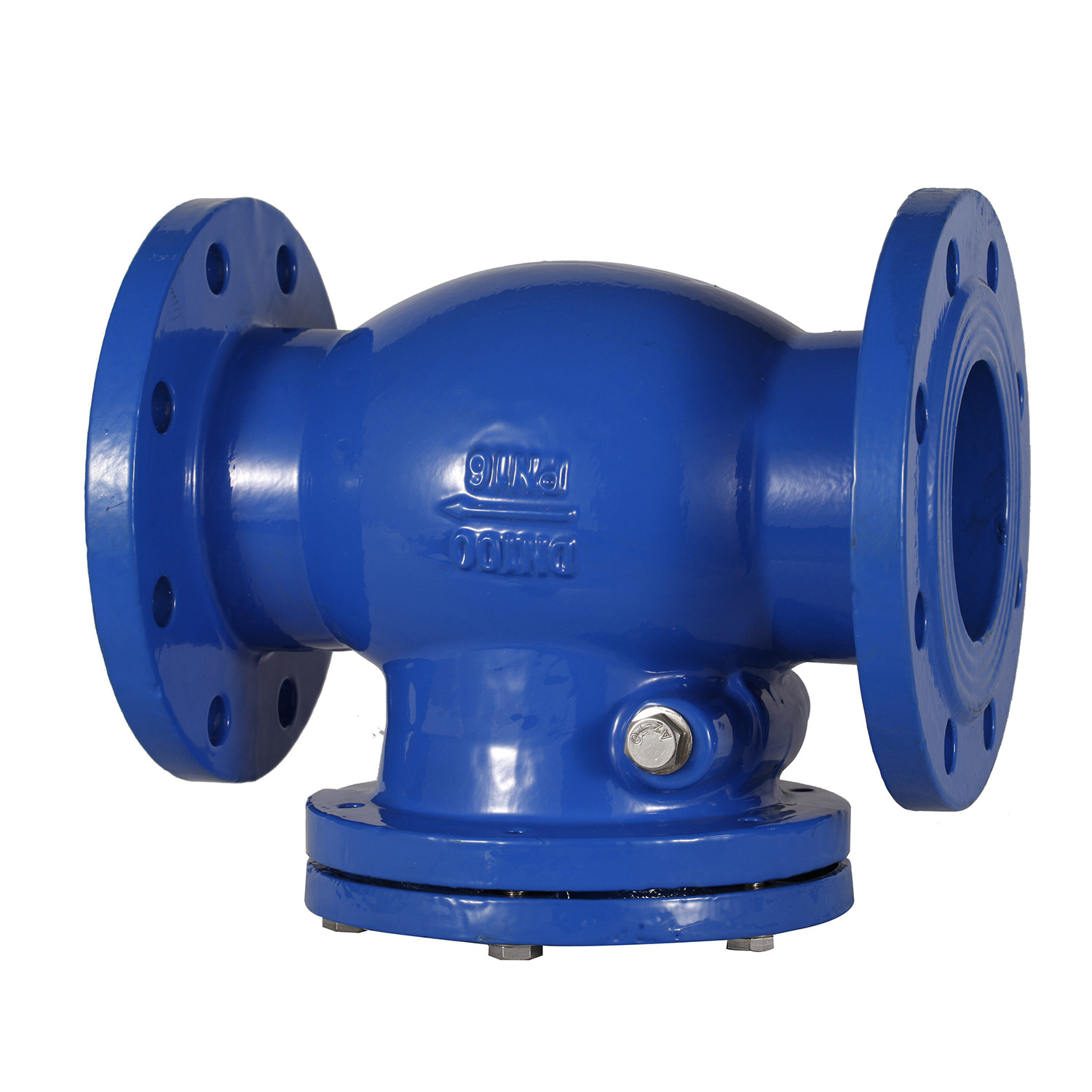

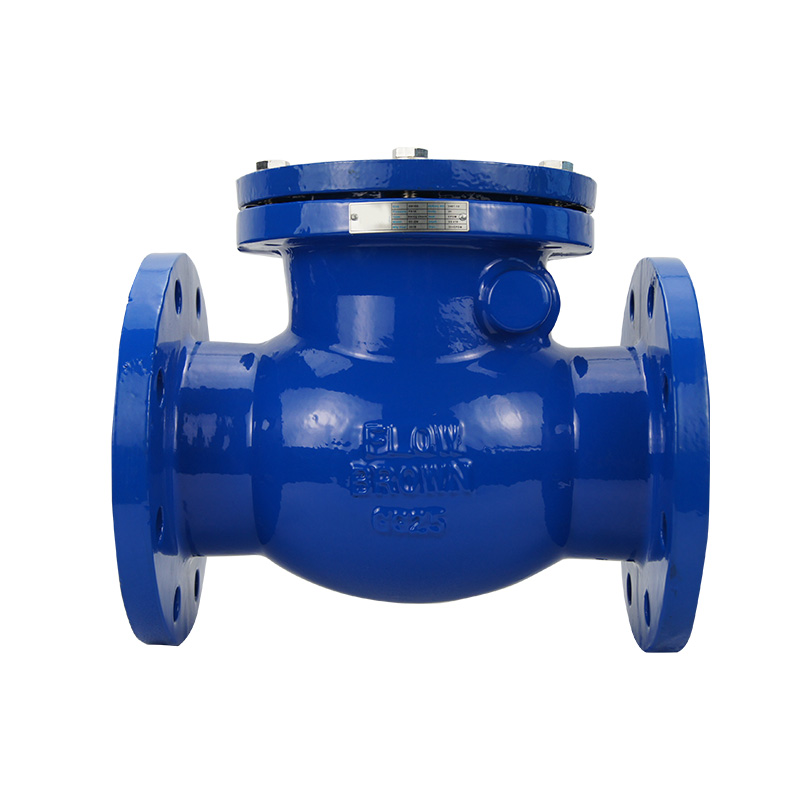

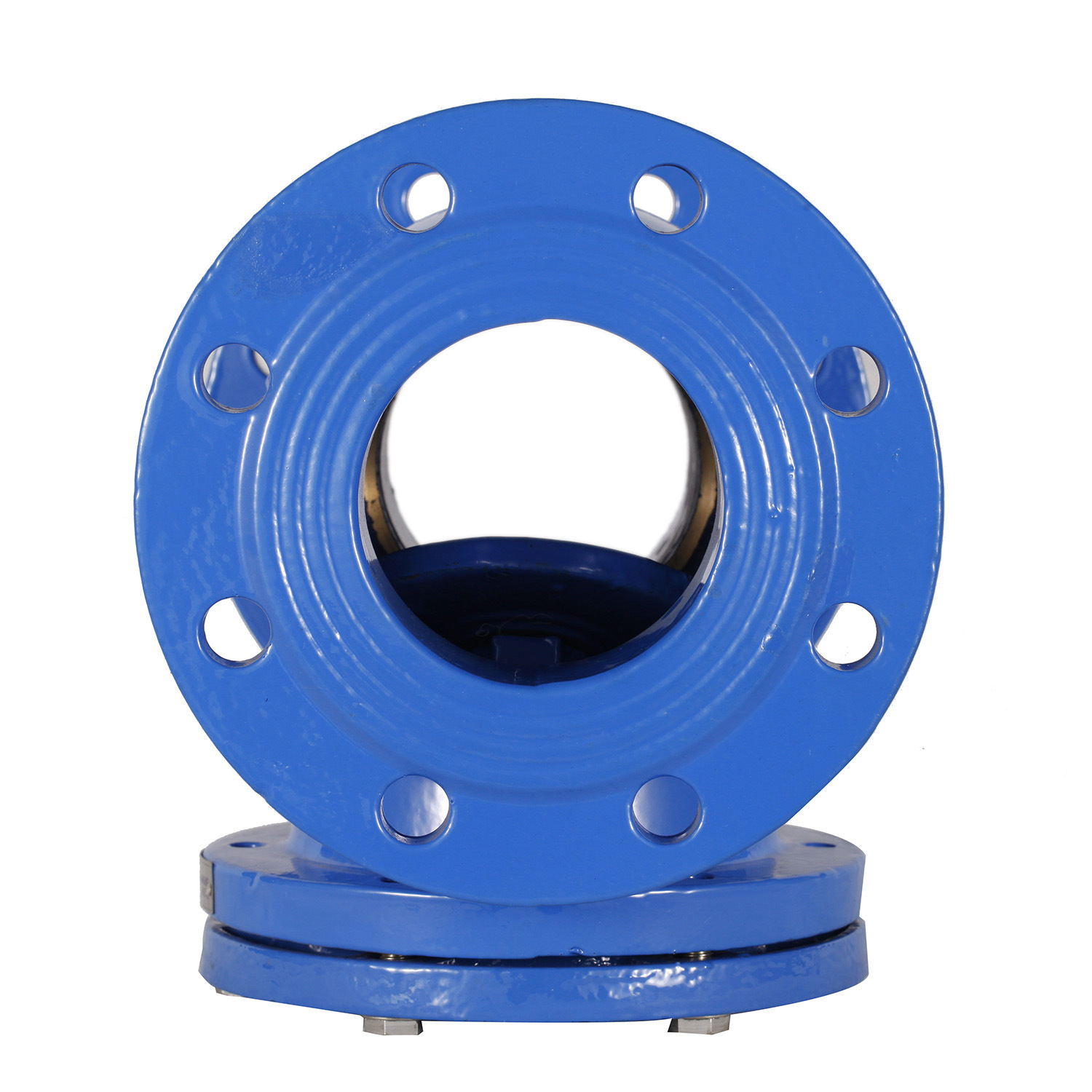

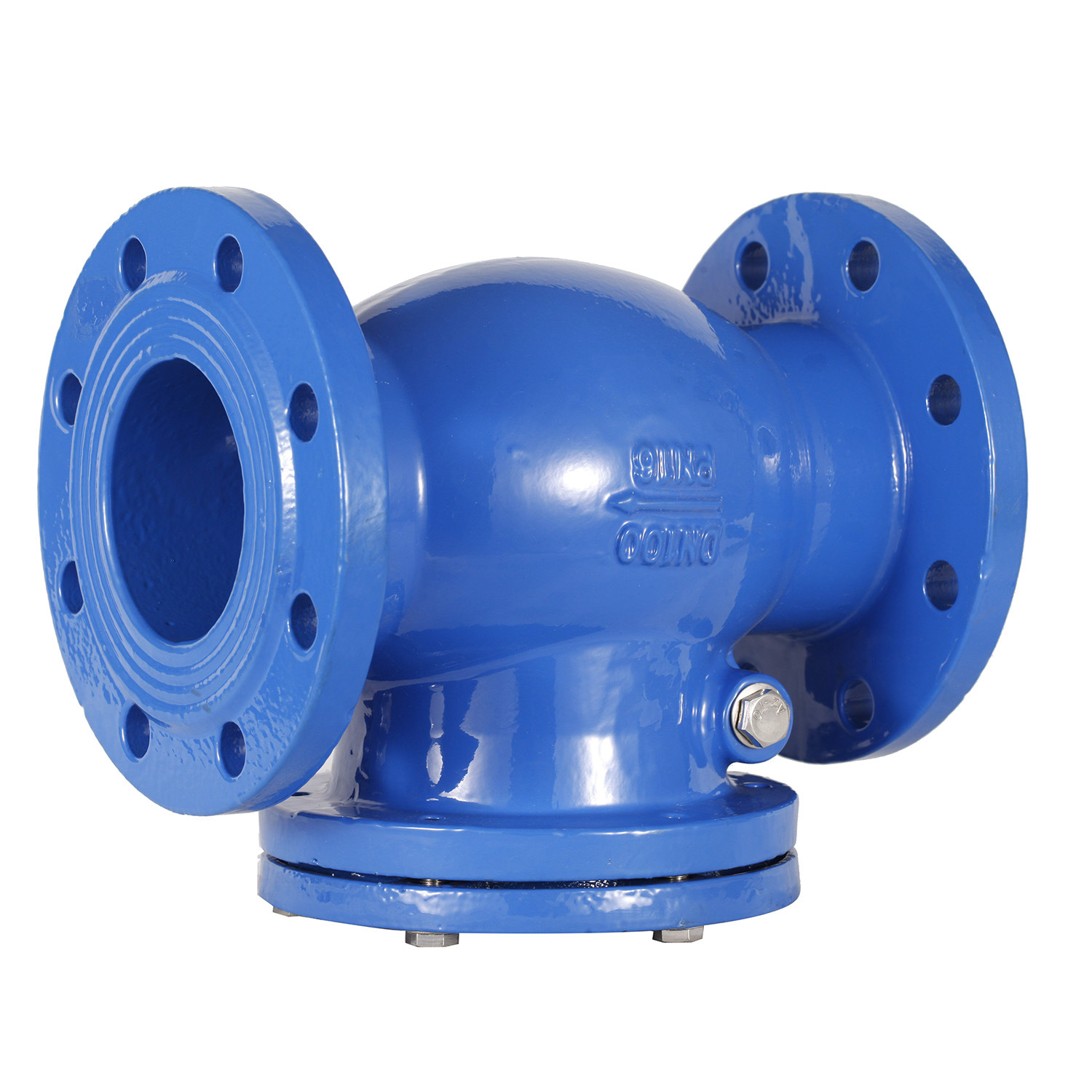

BS5163 flanged end swing check valve
1. Small in size, light in weight, compact in structure,easy in maintenance.2. Two torsion springs are used excreting on each of the pair valve plates,which close the plates quickly And automaticall
Price
2 years full warranty
Worldwide shipping
Secure payment
Product Details
- 1. Small in size, light in weight, compact in structure,easy in maintenance.
- 2. Two torsion springs are used excreting on each of the pair valve plates,which close the plates quickly
- And automatically.
- 3. The quick-close action prevents the medium from flowing back and eliminates water hammer effect.
- 4. Short body structure length and good rigidity.
- 5. This valve is tightly sealed, without leakage under the pressure water test.
- 6. Safe and reliable in operation,high interference-resistance.
- Specifications:
-
Nominal pressue (MPa) 1.0 1.6 Nominal diameter(mm) 50-600 50-600 Test pressure Shell 1.5 2.4 (MPa) Seal 1.1 1.76 Applicable temperature 150 Applicable medium Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
Alkalis, etc.Operating mode manual, worm gear, pneumatic, electric, etc. - Standards:
-
Design & Manufacture Flange Connection Face to Face Dimension Test & Inspection DIN3202 DIN2533&EN1092 DIN3202 F6 - Features:
- 1. Small in size, light in weight, compact in structure,easy in maintenance.
- 2. Two torsion springs are used excreting on each of the pair valve plates,which close the plates quickly
- And automatically.
- 3. The quick-close action prevents the medium from flowing back and eliminates water hammer effect.
- 4. Short body structure length and good rigidity.
- 5. This valve is tightly sealed, without leakage under the pressure water test.
- 6. Safe and reliable in operation,high interference-resistance.
