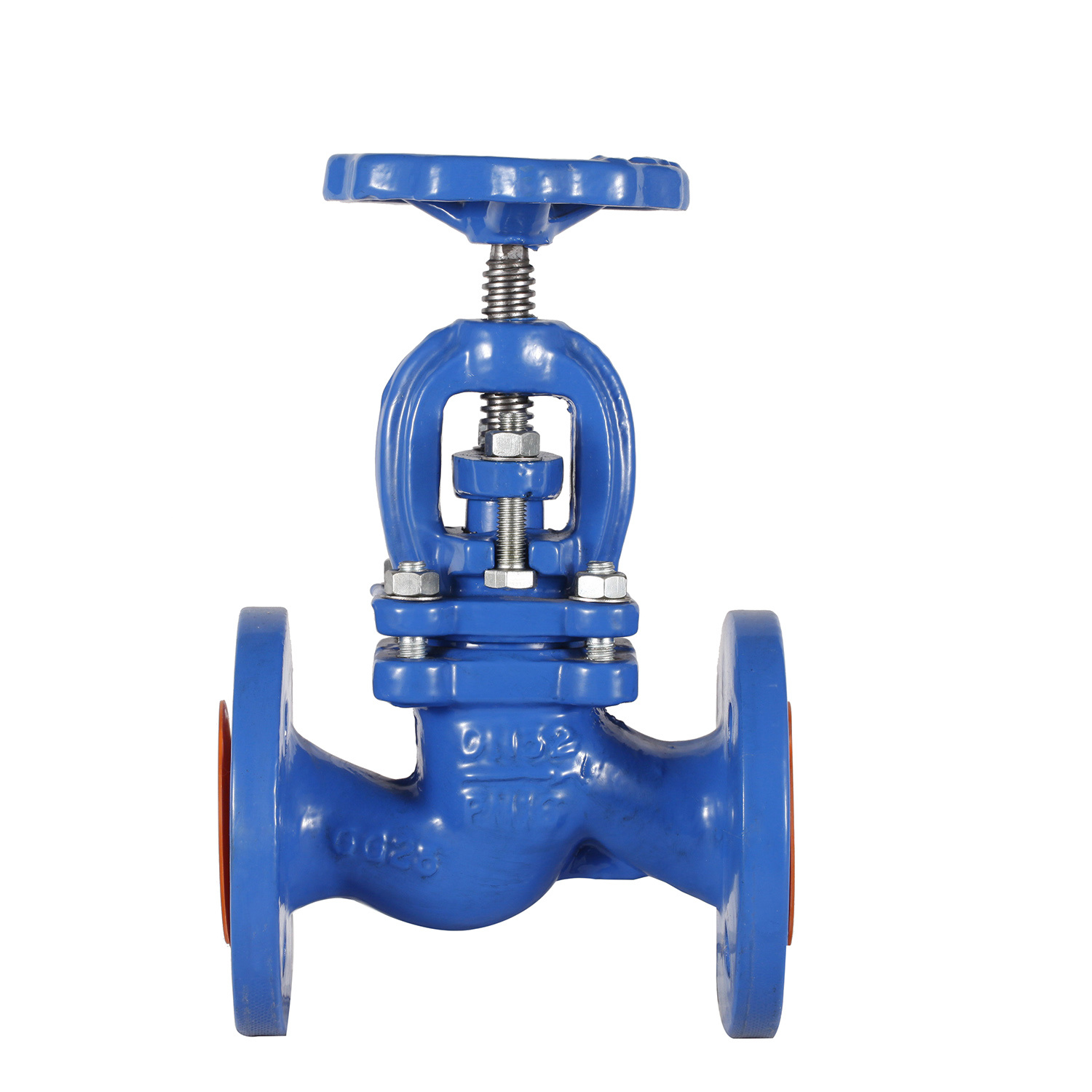

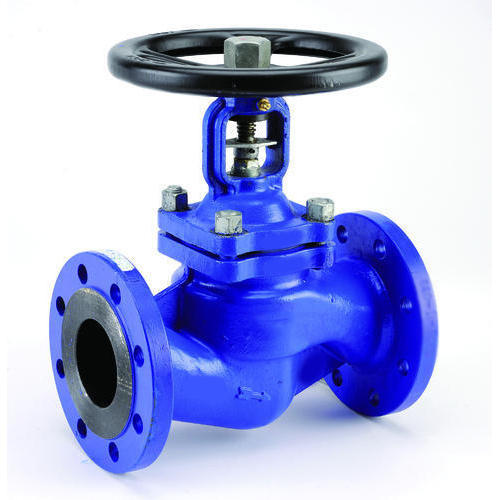

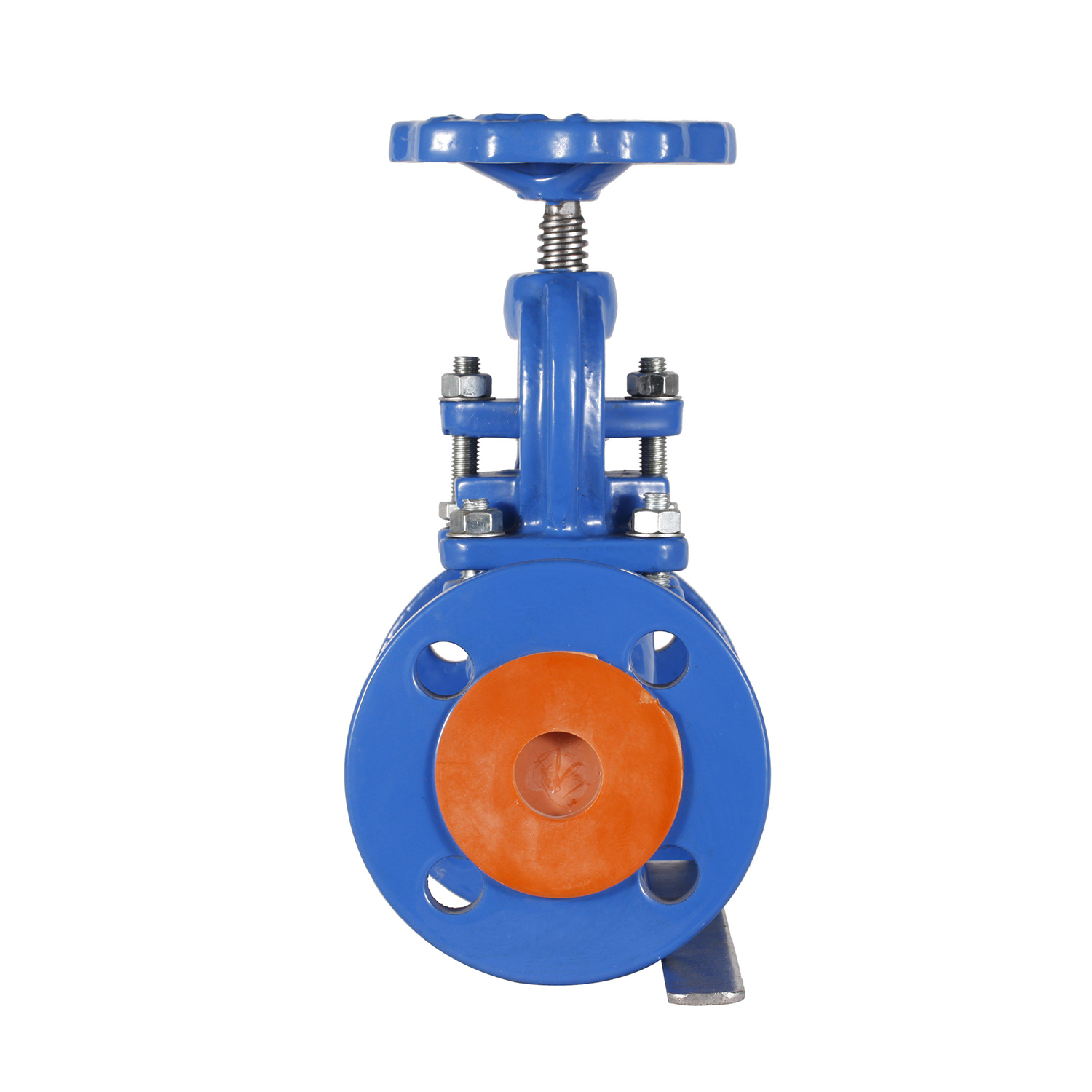

Globe Valve ANSI B16.10

Size DN50—DN600Nominal Pressure PN10/PN16Working Temperature -10C~120CSuitable Medium Chemicals,air,water,steam,oil, acids,salts,etcPerformance:Nominal pressue (MPa)1.01.6Nominal diameter(mm)Shell50-6

Categories: Ductile iron Valve, Globe Valve

Price

2 years full warranty

Worldwide shipping

Secure payment

Description
Reviews 0

Product Details

Size DN50—DN600

Nominal Pressure PN10/PN16

Working Temperature -10°C~120°C

Suitable Medium Chemicals,air,water,steam,oil, acids,salts,etc

Performance:

Nominal pressue (MPa)		1.0	1.6
Nominal diameter(mm)	Shell	50-600	50-600
Test pressure	Seal	1.5	2.4
(MPa)		1.1	1.76
Applicable temperature		150
Applicable medium		Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, Alkalis, etc.
Operating mode		manual, worm gear, pneumatic, electric, etc.

Standards:

Design & Manufacture	Flange Connection	Face to Face Dimension	Test & Inspection
MSS SP-70	ANSI B16.10 (125LB)	ANSI B16.10 (125LB)

Material List:

NO.	Part Name	Material
1	Body	Cast Iron/Ductile Iron
2	Body Seat Ring	Cast Bronze
3	Reaction Member	Brass
4	Disc	Cast Bronze
5	Gasket	Brass
6	Swivel Nut	Cast Brass
7	Boll	Steel
8	Body Gasket	Graphite
9	Bonnet	Cast Iron
10	Packing	Graphite
11	Packing Gland	Cast Brass
12	Gland Follower	Ductile Iron
13	Gland Follower Bolts	Steel
14	Gland Follower Nuts	Steel
15	Stem	Brass
16	Yoke Busing	Cast Bronze
17	Screw	Steel
18	Handwheel	Cast Iron
19	Identification	Steel
20	Handwheel nut	Ductile Iron
